STR-Tweed Specifications
| Manual
- 5W CLASS A
~ BIG TONE BREAKUP!
- Single-Ended
Output - Zero Negative Feedback
- 100% Tube Circuit
- GZ34 or 5Y3 Valve Rectifier
- Tube Reverb
w/Spring Tank - Foot Switchable
- Hot and Clean
mode Switch
- Powered
by choice of 6V6 ~ 6L6 Family (6V6 Stock)
- JJ 12AX7(2)
- JJ 12DW7 - JJ 6V6GT - JJ GZ34 Rectifier
- Point to Point
Hand Wired Circuit
- Cathode
Biased (no need to bias)
- Carbon Comp
Resistors ~ Mallory Caps
- Cloth Hook-Up
Wire
- Hi/Lo Input
for High & Low powered Pickups
- Heaters referenced
to ground
- Standby Switch
for tube warm-up, extending tube life
- All Swart Amplifiers
employ Star Grounding
- 4 ohm 1/4"
Out - Drive other Speaker/Cabinet
- 8ohm speaker
load totally OK
- Switchcraft
1/4 inch inputs and output
- CTS Potentiometers
- Custom High
Quality USA Built Swart Spec Iron

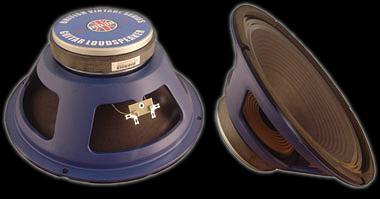

- Speaker: 12"
Mojotone BV-30H ~ 4 or 8 ohm
- Optional Celestion
Blue/Celestion Ruby Alnico 2015 on

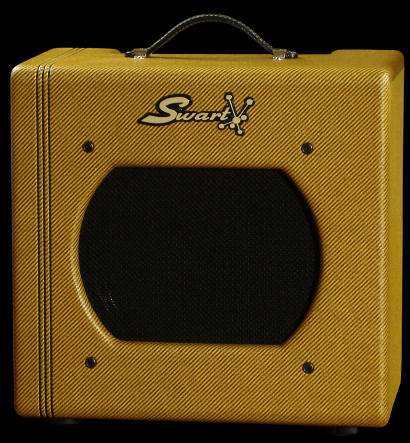

- Finger-Jointed,
solid Pine Cab w/ Lacquer Tweed Cover
- Vintage Jewel
Lamp ~ Circuit Fuse Protected
- IEC
Fuse: 1A Slow Blow / HT Fuse: 250ma Long Fuse
- Pre
2015:
17"
W x 9 3/4" D X 16 3/4" H (w/feet) ~29lbs
- 2015
On: 17"W x 10 3/4" D x 16 3/4" H (w/feet)
~29.5lbs
VIEW
in DARK Tweed |
|
Fuse
Info

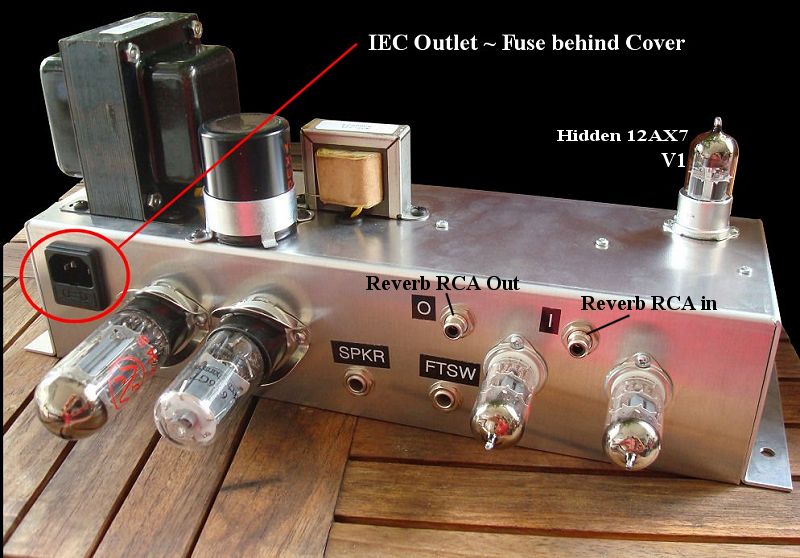

Amps with IEC socket
have a backup short fuse above IEC plug to sub; IF rectifier arcs, or
there is a power issue, this is the first fuse to check and usually
the fix. Use small screwdriver to pry open plate to reveal fuse and
backup fuse if not been used already. The long "power tube protection"
fuse is located between rectifier and power tube. Remember, if the fuse
DID blow, it's best to give the amp, especially the rectifier and power
tubes, a good look.
-
STR-Tweed (2 Fuses)...........IEC
1 Amp ~ Slow-Blow | 250ma Long Fuse (Power Tube)
|
