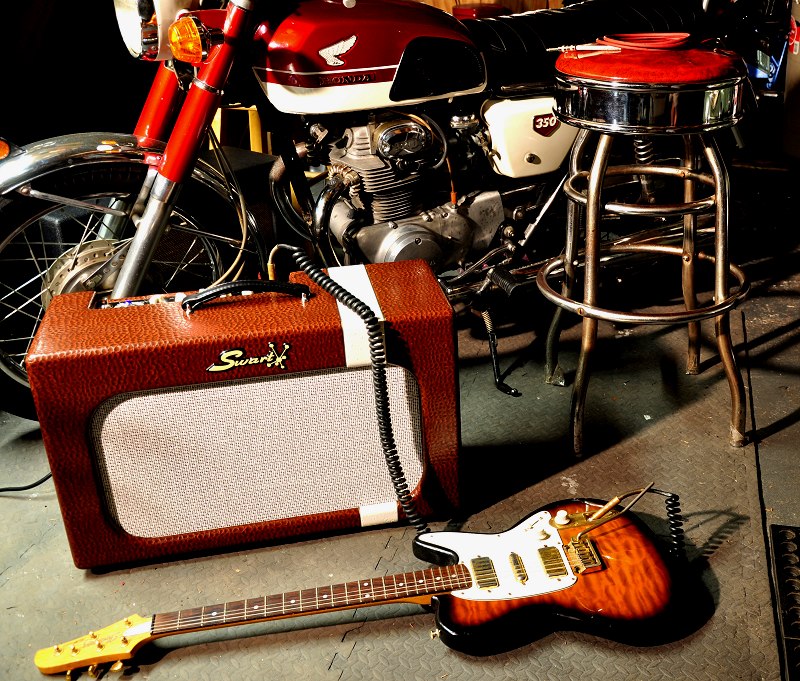

Swart MOD 84 ~ Swart's first production EL-84 Combo!

MOD 84

Tech & Specs

All Tube circuit ~15w twin EL-84 High Class A Bias AB
Cathode "AUTO" Bias (no need to bias)

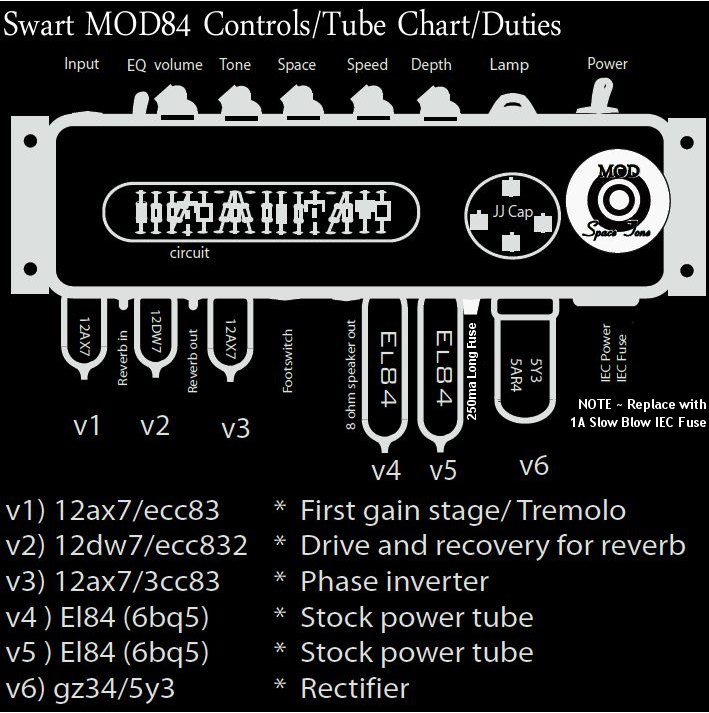

12AX7(2) - 12DW7(1)- EL-84(2) - GZ34 or 5Y3(1)
Tube Rectification ~ GZ-34 or 5Y3 for compression/earlier breakup
3-Way Interactive EQ Switch
Tube Reverb via 12DW7 with Spring Tank
Tube Tremolo with Custom Speed Sweep/Depth
Hi/Lo Inputs for better PU Output matching
Hand wired point to point ~ Made in USA
Standby Switch ~ Amp warmed up|extends tube life
Carbon Comp Resistors for BEST TONE
Mallory, Sprague and JJ Caps, selected for Application
Teflon covered High Purity Copper Wire
8ohm Custom Wired Heavy Duty Output Transformer
Dedicated 2 button foot switch ~ on/off of Tremolo/Reverb (Space)
Extra Large Rubber Feet for Vibration/Protection
Solid, finger-jointed Pine Cabinet ~ YOUR CHOICE COVERING - SAME PRICE
1x12 & 2x10 cab ~ Creamback/Cream/Blue/Options Available
Dimensions: 26 x 15.5 x 10.5 39lbs

NOTE: The MOD84 has TWO fuses for your protection. The MAINS fuse is located in the IEC where the plug for the power cable inserts into the amp chassis. There is a compartment above the plug that contains the fuse in use along with a spare fuse. The proper fuse for this application is a 1A Slow-Blow Short Fuse. The second fuse is the HT fuse that supplies the B+ voltage among other things. This LONG FUSE is a 250ma standard Fast Blow. If either of these fuses blow, please contact us at info@swartamps.com. In most cases, an issue with your power tubes or rectifier will cause the issue.

Mains IEC Fuse.............1A Slow-Blow Short Fuse
HT Fuse............................250ma Fast Blow Long Fuse
