Swart AST Pro Manual/Tech Info

ALL TUBE - TUBE REVERB - TUBE TREMOLO
AST PRO Manual & Tech Info

Specifications

• All Tube circuit ~18-20w twin 6V6 High Class A Biased AB

• Can be powered by 6V6 or 6L6 Family (no KT-66)

• Deeper Cab w/Recessed Chassis for Protection

• Chassis Elevated to accommodate Larger Speaker

• Rear Panel w/on fly Switchable External Out & INPUT (new)

• Dark Lacquer w/Dual Piping & contrasting Light Grill

• Cathode "AUTO" Biased (no need to bias for tube rolling)

• JJ/T-S 12AX7(2) - JJ 12DW7 - JJ/TAD 6V6 - JJ/TAD Selected GZ34

• Tube Rectification ~ GZ-34 or NOS 5Y3 (See below)

• Sub NOS 5Y3 for earlier breakup/increased SAG

• 100% Tube Reverb & Tremolo ~ Quality Spring Tank

• Hi/Lo Inputs for better PU Output matching

• Hand wired point to point ~ Made in USA

• Standby Switch ~ Amp warmed up|extends tube life

• Carbon Comp Resistors for BEST TONE

• Mallory, Sprague, and JJ Caps selected for Application

• Finest silver tinned cloth & Teflon covered wire

• 8 Ohm USA Custom Output Transformer

• Dedicated 2 button foot switch included

• Extra LARGE Rubber Feet for Vibration/Protection

• Solid, finger-jointed Cabinet

• Standard w/ 12" Celestion G12H-30 UK or Creamback 75

• Optional Celestion Alnico GOLD, Blue, Anniversary, or Mojo BV25

• FUSE: 1A SLOW BLOW 250v 30mm

• 15 1/2" W x 10 1/8" D X 18 7/8" H ~ Weight @ 31lbs

Pro Panel Internal/External Switch with Output and Input Jacks Above

Switch to Internal puts signal direct from 8ohm output to internal speaker (8ohm). Switch to External sends signal to OUT to either External Cabinet or device such as Night Light's FROM AMP jack (switchable on fly). You would then connect the TO SPEAKER cable from Night Light to the IN jack above, this routing the NL's signal BACK to the internal speaker. NOTE: ALWAYS HAVE A LOAD CONNECTED TO THE OUTPUT JACK WHEN SWITCHED TO EXTERNAL. Ideal match should be 8ohms. If no load present for extended period with switch to EXTERNAL, damage can occur to Output Transformer. NL does count for a load if connected though the TO SPEAKER back to INPUT on panel must be connected if the NL is ever in BYPASS mode. In addition, you can only run EITHER the internal speaker OR the External Cabinet, not both at same time. For more on NL including hookup diagram, see Night Light FAQ.

AST PRO- "HI" and "Low" Inputs with dark
Lacquered tweed and pinstripes ~ recessed Chassis
w/ext out and Input for NL. Switchable on fly

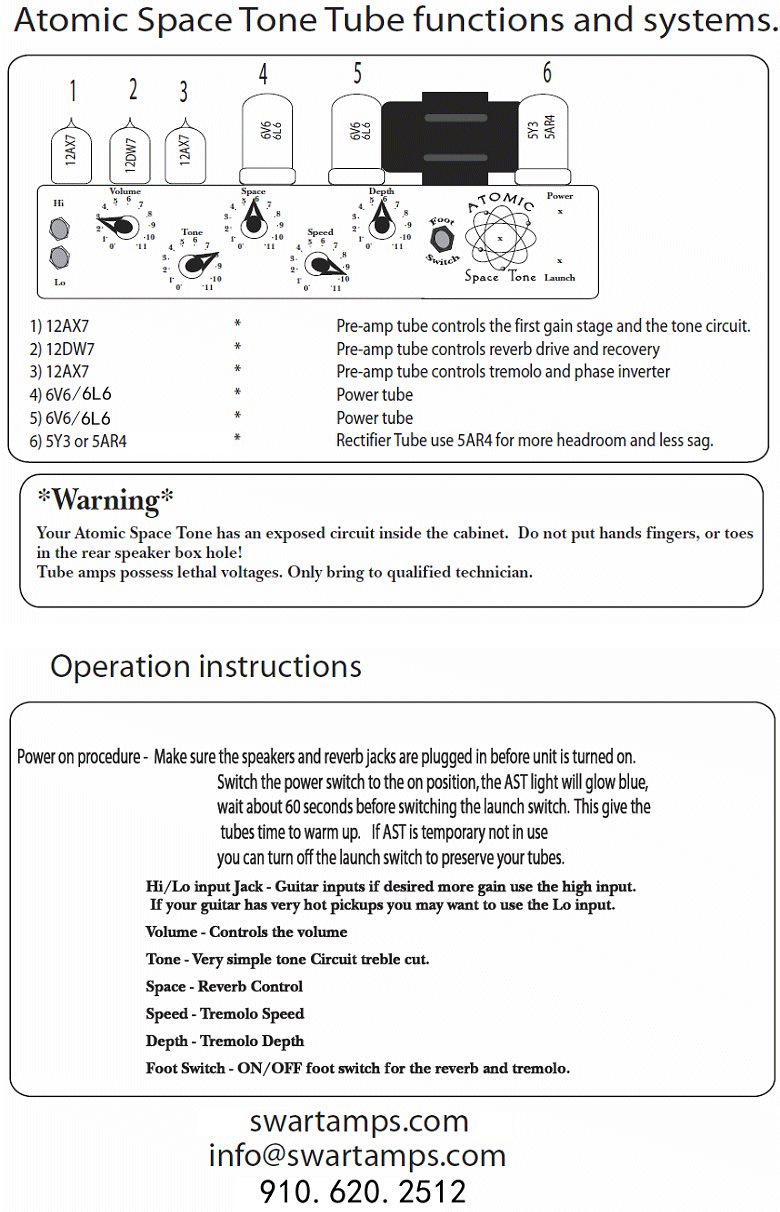

- Click above for full view -

Click for full view
