CLASS A 5W Single-Ended - TUBE REVERB - 12" Speaker - 6V6/6L6 Compatible

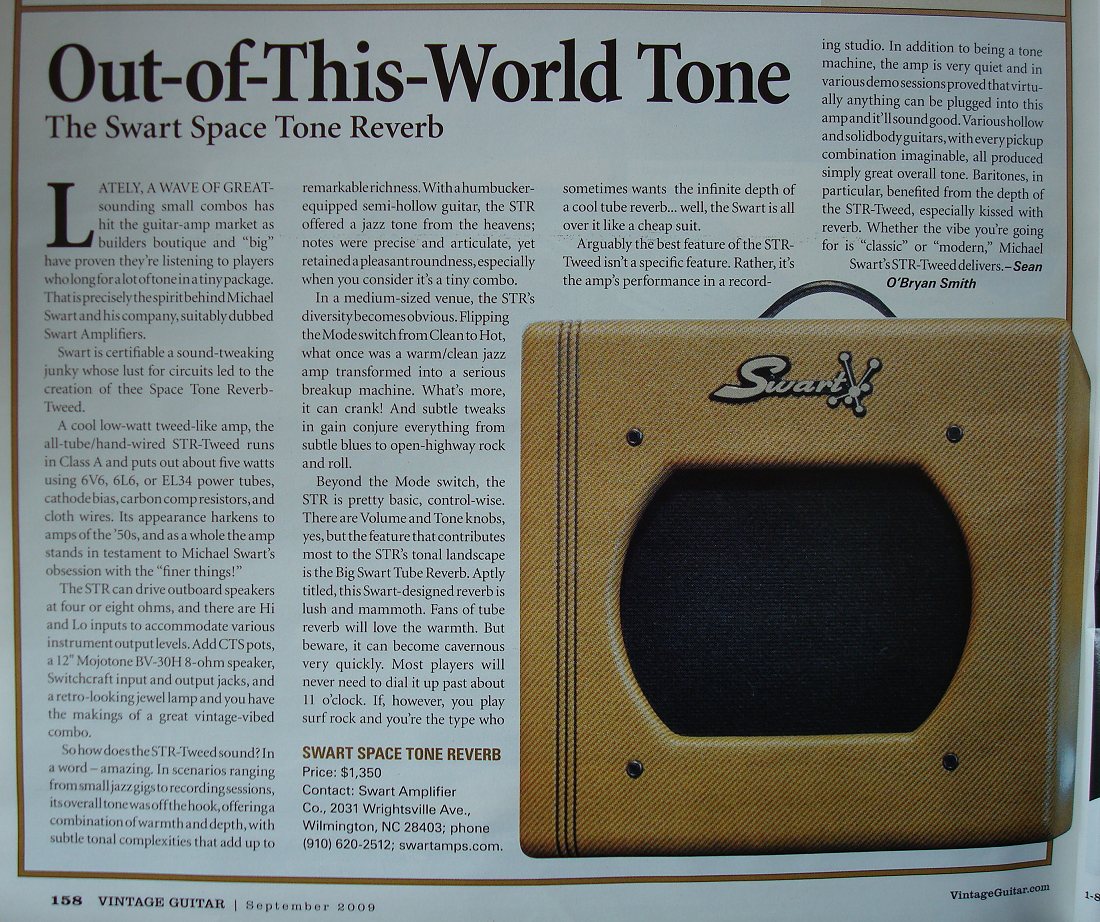

Vintage Guitar on the STR -Tweed • 9/09

---

©2023 swart amplifier co.         2031 wrightsville ave wilmington nc        910.620.2512       info@swartamps.com      design & hosting by kh

     STR-Tweed Specifications

• 5W CLASS A ~ BIG TONE BREAKUP!
• Single-Ended Output - Zero Negative Feedback
• 100% Tube Circuit - GZ34 or 5Y3 Valve Rectifier
• Big Swart Tube Reverb - Foot Switchable
• Hot and Clean mode Switch
• Powered by choice of 6V6 ~ 6L6  (stock w/6V6)!
• JJ 12AX7(2) - JJ 12DW7 - JJ 6V6S - JJ GZ34 Rectifier
• Point to Point Hand Wired Circuit
• Cathode Biased (no need to bias)
• Carbon Comp Resistors ~ Mallory Caps
• Cloth Hook-Up Wire
• Hi/Lo Input for High & Low powered Pickups
• Heaters referenced to ground
• Standby Switch for tube warm-up, extending tube life
• All Swart Amplifiers employ Star Grounding
• 4/8 ohm 1/4" Out - Drive other Speaker/Cabinet
• Switchcraft 1/4 inch inputs and output
• CTS Potentiometers
• Custom High Quality USA Built Swart Spec Iron
• Speaker: 12" Mojotone BV-30H ~ 8 ohm
• Finger-Jointed, solid Pine Cab w/ Lacquer Tweed Cover
• Vintage Jewel Lamp ~ Circuit Fuse Protected
• Dimensions: 17" W x 9 3/4" D X 16 3/4" H (w/feet) ~ 29lbs

          See & hear more on the Swart STR-Tweed
