Space Tone 6V6se
Construction
Class A - Single-Ended
- 6V6 - Tube Rectified
note: Photos at right click to full 1200px images
NOTE: These are Mk 1 Construction - Tweed
Version New & Improved!
Space Tone 6V6se Cabinet

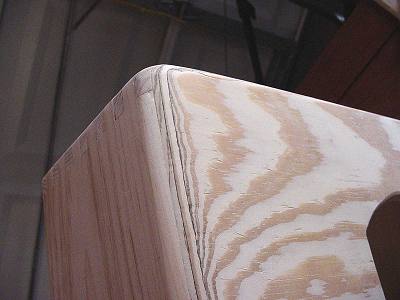

after router work and initial sanding. Notice superior sanding work here compared
to competition. Finger joints are very tight with no gaps or voids. This cabinet
is extremely tight which makes for an excellent, solid, enclosure. Other custom
boxes offer more mediocre cabinetry. These cabinets are custom made by woodworker,
Clark Thomas.
Click
photo for 1200px view
Space Tone 6V6se Cabinet

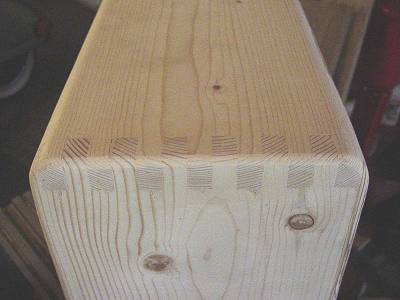

from end. Here you really see the fine work done on these finger joints. This
is about as well-made a cabinet as you will find in the marketplace, bar none.
This cabinet mirrors the Vintage Supro but with many improvements in build
and attention to detail. Again, we invite you to compare to the competition.
Nothing touches this for the price.
Click
photo for 1200px view
Space Tone 6V6se Cabinet

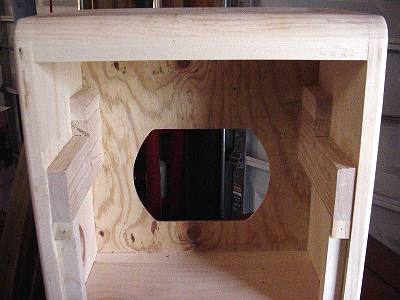

- rear view - Here we have the rear view showing the baffle, cutout, and sides.
There is plenty of bracing in this enclosure. Michael also made sure there
was an extremely sturdy support for the Space Tone 6V6se amplifiers chassis,
which is mounted in a very rigid fashion but is removable for easy maintenance.
Click
photo for 1200px view

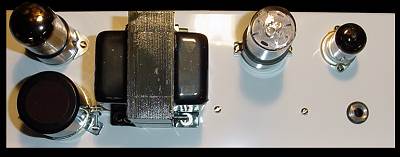

Also, Michael has
eliminated the multiple caps paralleled within most amps and substituted a
more costly heavy duty JJ Surface Mount 500V 40-20-20-20uF cap. This will
add reliability and clean up the interior. Clean top layout - JJ cap view
Click
photo for Mk 1 Version 1200px view
Space
Tone 6V6se (Mk 1)

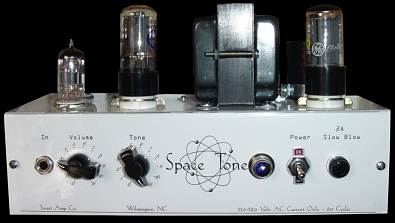

Above - 6V6se amplifier - full face view. Left to right:- JJ 12AX7 - Electro-Harmonix
6V6GT output - Heavy Duty Power Transformer - NOS 5Y3 rectifier - Directly
behind the 5Y3 is the JJ 500v 40-20-20-20uf Surface Mount PS cap.
